Integrated HUD Camera







P/N 93-4439





The World’s Smallest, Complete, Color Video Camera, Integrated Into A Military HUD.

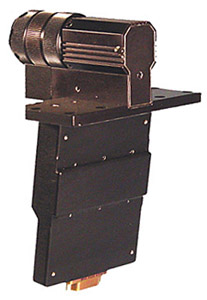

Integrated HUD Camera

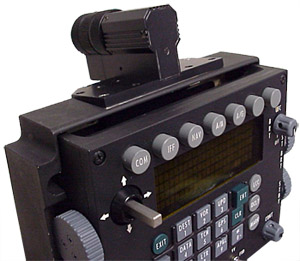

Integrated HUD Camera mounted in cockpit panel.















FEATURES











●HIGH RESOLUTION - 470 TVLH (NTSC) - 460 TVLH (PAL)
●LENS/IRIS AUTOMATIC EXPOSURE CONTROL (AEC)
●AGC AUTOMATIC TO –18dB
●PROVIDES 24 F-STOPS DYNAMIC LIGHT LEVEL RANGE
●MINIMUM SENSITIVITY 0.35 LUX AT F/1.4, AGC—ON
●EVENT MARK INTERNALLY JUMPERED BETWEEN
        ◊COMPLETION OF GROUND OR
        ◊ 1.0 TO 28 VDC
●AEC LOCK ADJUSTABLE FROM .5 TO 9.0 SECONDS—FOR AIR TO GROUND
●VIDEO STANDARDS—NTSC OR PAL (SPECIFY AT TIME OF PURCHASE)
●VIDEO FORMATS—Y/C COMPONENT AND NTSC COMPOSITE
●PROVISIONS FOR RGB BY ADDING A SEPARATE PC BOARD
●WEIGHT—9.0 OUNCES—.255 KILOGRAMS
●RS-232 PROGRAMMABLE















GENERAL SPECIFICATIONS











●Automatic Exposure Control with lens iris
●Adjustable air-to-ground exposure lock (.5-9 sec)
●Visual event mark
● 15 VDC operating voltage (provided by HUD)
●Internal or external sync
●Pickup device: Interline-transfer hyper HAD CCD, 1/2”
●Horizontal resolution:
        ◊NTSC: 470 TV lines
        ◊PAL: 460 TV lines
●Picture elements:
        ◊NTSC: 768(h) x 494(v)
        ◊PAL: 752(h) x 582(v)

●S/N ratio:
        ◊NTSC: >-48dB
        ◊PAL: >-46dB
●Sensitivity: 2000 Lux at f/5.6
●Minimum sensitivity: .22 Lux at f/1.4 (AGC-ON)
●Shutter speeds: 1/60th second, 1/100,000 second,
   flickerless, and CCD iris (AEC), Off for A/0-10A
●AutomaticAGC
●Gamma: 0.45/1
●White balance: ATW, 3200K, 5600K, and Manual
●Video formats: Y/C component and NTSC composite
●RS-232 Programmable
●Weight: 9 Ounces—.255 Kilograms
●12 month warranty















ENVIRONMENTAL SPECIFICATIONS











Operating Temperature

-25°C to 71°C

Storage Temperature

-55°C to 80°C

Altitude

43,000 feet

Over Pressurization

-15,000 feet

Humidity Operating

90% RH, 60°C, 2 hours

Humidity Storage

48 hours (two 24 hour cycles)
        ◊95% RH, 50°C, 6 hours
       ◊85% RH, 38°C, 16 hours

Vibration

Random, 6 G rms, 5 minutes duration

Shock

9 Gs, 11 msec., 1/2 sine wave, 3 axes

Acceleration

Lateral (Nx): 6 Gs
Longitudinal: 6 Gs
Normal ( Nz): 8 Gs















OPTICAL SPECIFICATIONS











Lens Focal Length

FOV Horizontal

Degrees Vertical

FOV Horizontal

Milliradians Vertical

Application

16.42mm, f1.4

22.06

16.63

384.9

290.3

HUD-Special
