A-4M LOCKHEED FIGHTING HAWK
COLOR VIDEO HUD CAMERA

The A-4M Color Video HUD Camera is an intelligent mix of Mil-Standard and commercial off-the-shelf components. Camera electronics incorporate extensive filtering to provide noise-free and exceptional image quality using aircraft power. No aircraft modifications are necessary and the unit uses existing electrical connectors and mounting provisions. The camera assembly is designed around a single unit construction and is easily installed and boresighted.

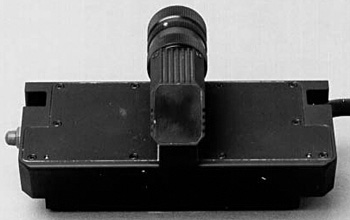

The camera assembly, consisting of a periscope and color camera, is mounted on the HUD in the cockpit so that it records what the pilot is viewing and the symbology from the HUD. The camera converts the received optical images into electrical video signals and can output the video signals to an on-board Video Cassette Recorder.

The Event Mark switch, on the left side of the camera, actuates the EM in the VCR.

FEATURES

● Automatic Exposure Control (AEC)
● 19 F-Stop Dynamic Range Lens
● Automatic Gain Control (AGC)

● Y/C Component Video Output
● Event Mark (EM) Actuator
● High TV Resolution

GENERAL SPECIFICATIONS

●Automatic Exposure Control (AEC) with lens iris
●Automatic Gain Control (AGC) - on/off
●Event mark actuator
●28 VDC input power
●Internal or external sync
●Pickup device - Interline-transfer hyper HAD CCD, 1/2”
●Horizontal resolution:
          NTSC - 470 TV lines // PAL - 460 TV lines
●Picture elements:
          NTSC - 768(h) x 494(v)
          PAL -752(h)x582(v)
●S/N ratio:
          NTSC  >48dB // PAL  >-46dB

●Sensitivity - 2000 Lux at f/5.6
●Minimum sensitivity - 4.5 Lux at f/1.2
●Shutter speeds - 1/60th second, 1/1000 second,
   flickerless, and CCD iris (AEC)
●Gamma - 0.45/1
●White balance - ATW, 3200K, 5600K, and Manual
●Video formats - Y/C component and NTSC composite
●Weight - less than 2 lbs
●Mean-Time-Between-Failure - 30,000 hours
●12 month warranty

ENVIRONMENTAL SPECIFICATIONS

OPTICAL SPECIFICATIONS
