Auxiliary Trailer

	Contact Auxiliary Trailer sales representative *Visit the Photo-Sonics Video Gallery to view product videos.*

The high-strength auxiliary trailer supplements the capabilities of both the Fly-Out, Close-In and Mini-Sextant tracking mount systems. Provides support capabilities including a generator, security camera, customer installed wireless data link, safety lighting, and UPS.

Lightning and Grounding Protection - The trailer supplies all power for one tracking mount, utilizing a connection to shore power, as well as a diesel generator.

Self-Diagnosing Control System - The trailer is equipped with a self-diagnosing control system and holds support equipment including security camera, safety lighting, uninterruptible power supply (UPS), and wireless data transmission capability.

Spindle-Driven Mast - Its locking spindle-driven mast has a mast elevation readout and provides a platform on which customer provided equipment can be mounted.

Automatic Transfer Switch - The system can be operated and monitored locally from the display-controller at the control box or a remote user interface via web accessible GUI. In AUTO mode, shore power is set as the primary and generator as standby. The transfer switch will automatically switch and transfer load to the generator when a loss of power is sensed in the primary. If shore power is restored, then the transfer switch will automatically switch back to shore. In manual mode, automatic switching is disabled. Either shore or generator is selectable and will be set as the primary source with no standby.

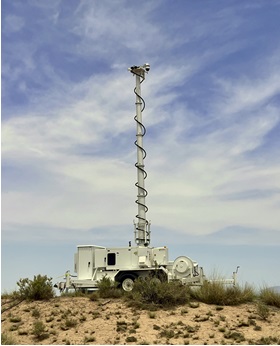

Auxiliary Trailer: Extended

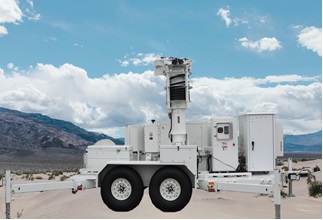

Auxiliary Trailer: Retracted
