470RIII (NTSC) / 460RIII (PAL) Ruggedized Video Cameras




The PSI-470RIII / 460RIII is an ultra-compact and ruggedized
video camera with a ⅓-inch color sensor.

  This camera is the latest in our highly successful
PSI 470R / 460R cameras, offering improved specifications, single I/O connector, all in the same mechanical footprint.

It is ideally suited for video monitoring in the most demanding environments and is used widely in Aerospace, Defense, and Industrial applications.

Its ultra-compact design eliminates the need for a bulky Camera Control Unit (CCU), allowing the
PSI-460RIII camera to be used in space-restricted
applications.

The PSI-460RIII has a choice of miniature lenses with associated lens clamps or can be converted to a standard C-mount lens as required.
     KEY FEATURES
        • 12/28Vdc operation
        • 12V DC output (150mA)
        • 2000 Lux Sensitivity
        • Single camera unit
        • PAL / NTSC versions
        • Image flip function
        • Electronic IRIS function
        • Composite and Y/C outputs
        • RS-232 control
        • Ultra-compact and lightweight
        • External synchronization
        • High-G operation



Technical and Environmental Specifications
  PSI-470R III (NTSC) PSI-460R III (PAL)
   Image Device ⅓ inch type IT CCD
   Color Filter Complementary color mosaic (?)
   Effective Picture Elements 768 (H) x 494 (V) 752 (H) x 582 (V)
   Lens Mount Special or “C” Mount
   Lens Types 2.7mm 83° Horizontal F.O.V.
4.5 mm 56° Horizontal F.O.V.
9mm 30° Horizontal F.O.V.
f2.8 6-18mm miniature zoom lens
   Sync System Internal/External (automatic switching)
   Video Output VBS or Y/C
VBS: 1 Vp-p, 75 Ω, sync negative
Y: 1 Vp-p, 75 Ω
C: composite video output dependent
   Horizontal Resolution 470 TV lines 460 TV lines
   Minimum Illumination 1.5 lux (F1.4, AGC ON)
   Sensitivity 2000 lux, F11, AGC OFF (0 dB)
   S/N Ratio 46 dB (AGC OFF (0 dB)) 48 dB (AGC OFF (0 dB))
   Shutter Speed 4 speeds selectable — OFF, Flicker less, 1/1000 s, CCD iris
   CCD Iris Auto: 1/60 to 1/4000 s Auto: 1/50 to 1/4000 s
   White Balance 5 modes selectable — ATW, One Push WB, 3200 K, 5600 K, MANUAL
   Gamma ON/OFF — Controlled by RS-232C
   Gain Control 2 modes selectable — AGC (0 dB to 18 dB), Fixed (0 dB)
   Connector POWER, SYNC, VIDEO, RS232
   Power Requirements 12V DC or 28V DC
   Power Consumption 1.5 W
All Environmental Statements are by Analogy and Read Across
   Operating Temperature -25 to 70°C (C25+13 to 158 °F)
   Storage Temperature -55 to 80°C (-67 to 176 °F)
   Operation Humidity 90% Relative Humidity (non-condensing)
   EMC  MIL STD 461 / 462
   Shock Resistance  70 G
   Dimensions  81.5 x 54.5 x 39 mm (3.19 x 2.14 x 1.53 inches) LWH
   Mass  180 g (6.35 oz) including lens
   Supplied Accessories User Manual & Mating Connector

Specifications subject to change without notice.

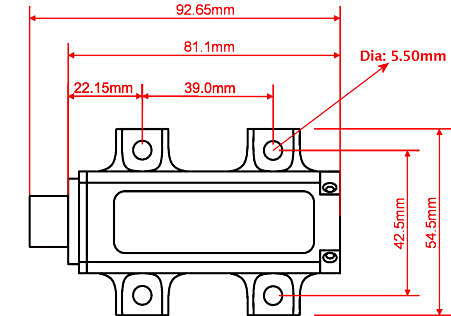

  CAMERA DIMENSIONS
